How Many Volts Should a 100 Watt Solar Panel Produce?
A 100-watt solar panel may seem simple on the surface, but understanding its voltage output is essential before connecting it to any solar power system. Voltage is the factor that determines how efficiently your panel communicates with batteries.
Charge controllers, inverters and making it one of the most important specifications to understand. Choosing the wrong voltage setup can lead to reduce efficiency, unstable charging, or even serious damage to your equipment over time.
We’ll break down the actual voltage a 100W solar panel produces, explain why voltage levels fluctuate under different weather and sunlight conditions, and demonstrate how these numbers impact real-world solar installations.

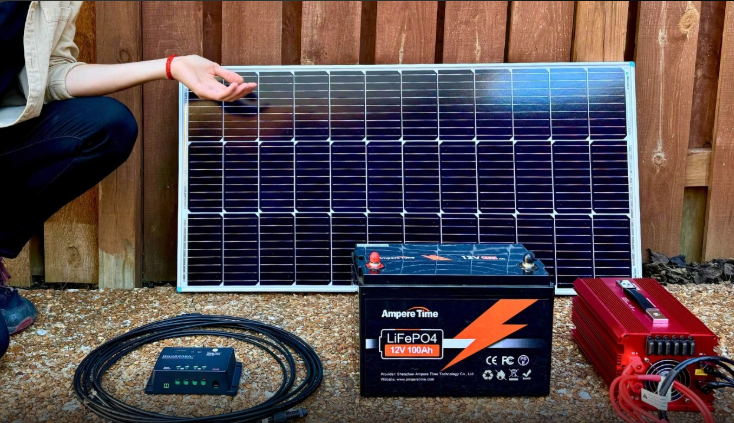

Whether you’re setting up an RV system, an off-grid cabin, or a home backup solution, understanding solar panel voltage will help you build a safer and more reliable system.
Understanding Solar Panel Voltage: The Basics You Need First
Before jumping to numbers, it helps to understand that a solar panel doesn’t produce just one voltage figure it produces several, and each one matters in a different context. Every solar panel comes with a specification sheet that lists at least four voltage values.
These are measure under Standard Test Conditions (STC), which means 25°C cell temperature and 1,000 watts per square meter of irradiance. These conditions are control lab standards real-world output will vary, but STC gives you a consistent baseline for comparison.
The four key voltage figures are Voc (Open Circuit Voltage), Vmp (Voltage at Maximum Power), Vnom (Nominal Voltage), and the operating voltage range your system will actually see day to day. Understanding each one separately eliminates most of the confusion homeowners and DIY builders experience when setting up a solar system for the first time.
The Four Voltage Ratings of a 100 Watt Solar Panel Explain
Open Circuit Voltage (Voc)
Voc is the maximum voltage a panel produces when it is not connect to any load essentially, when the circuit is open and no current is flowing. For a standard 100 watt solar panel, Voc typically falls between 21 and 23 volts.
This is the voltage you will read on a multimeter if you connect it directly to the panel’s positive and negative terminals on a sunny day without anything else in the circuit. It is the highest voltage the panel will ever produce, and it is the figure use to determine the maximum input voltage your charge controller must be able to handle safely.
Maximum Power Voltage (Vmp)
Vmp is the voltage at which the panel produces its rate wattage in this case, 100 watts. This is the most practically important voltage figure because it represents actual working conditions. For a 100 watt panel, Vmp typically sits between 17 and 19 volts, with 18 volts being the most common figure across mainstream brands.
When your panel is connect to a properly match MPPT charge controller, the controller continuously tracks and locks onto Vmp to extract the maximum possible power from the panel at any given moment.
Nominal Voltage (Vnom)
Nominal voltage is a simplify classification use to describe system compatibility it does not describe what the panel actually produces. A 100 watt solar panel is almost universally classify as a 12V nominal panel. This means it is designed to charge a 12 volt battery bank when pair with an appropriate charge controller.
The extra voltage headroom sometimes call the “charging overhead” is necessary to push current into a battery that may be sitting at 12.6 volts or higher. Without that overhead, the panel cannot effectively charge the battery.
Operating Voltage Under Real Conditions
In real-world use, the voltage your 100 watt panel produces will fluctuate throughout the day. Early morning and late afternoon, when the sun angle is low and irradiance is reduce, voltage will be lower.
At midday under direct sun, the panel will operate close to its Vmp rating. On extremely hot days, voltage actually drops solar panels lose approximately 0.3 to 0.5 percent of their voltage for every degree Celsius above 25°C.
This temperature coefficient effect is why panels in hot climates like Arizona or inland California sometimes underperform on the hottest summer days despite abundant sunshine. The irradiance is high, but the heat pulls voltage and therefore power downward.
What Voltage Will You Actually Measure From a 100 Watt Panel?

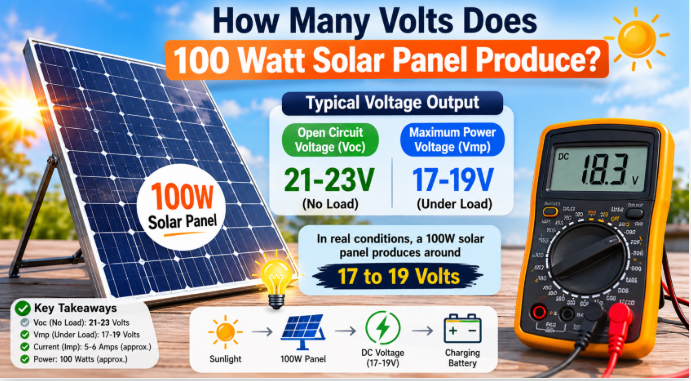

If you take a multimeter to a 100 watt solar panel under good midday sun, here is what you should realistically expect to see depending on the measurement type. Open circuit, with no load connect, you should read between 21 and 23 volts on a quality panel.
Under load meaning connect to a charge controller charging a 12V battery you will typically see the panel operating between 14 and 18 volts. Depending on the battery’s state of charge and the type of charge controller in use.
A PWM controller will pull the panel down closer to battery voltage (around 14 to 14.8 volts during bulk charging), while an MPPT controller will allow the panel to operate much closer to its natural Vmp of 18 volts.
Why Voltage Matters More Than Wattage for System Design?
For a standard 12V system using a 100 watt panel, a PWM charge controller rate for 12V with a maximum input voltage above 23V (the panel’s Voc) is the minimum requirement. An MPPT controller rate for 12/24V output with an input voltage range covering.
18 to 23V will extract significantly more power typically 20 to 30 percent more by operating the panel at its true Vmp rather than forcing it to battery voltage. For off-grid systems using multiple 100 watt panels wire in series, voltage adds with each panel.
Two 100 watt panels in series produce approximately 36 to 46 volts open circuit, well outside the safe input range of a basic 12V PWM controller, but perfectly suite for a 24V MPPT system.
Voltage Differences Between 100 Watt Panel Brands and Technologies
Polycrystalline panels, which use multiple silicon crystals, typically produce Voc values between 21 and 22 volts. Monocrystalline panels, which use a single silicon crystal structure, often produce slightly higher Voc values between 22 and 23 volts, along with marginally higher efficiency.
Flexible and thin-film 100 watt panels frequently have different voltage characteristics than rigid panels and may produce lower Voc values. Reputable manufacturers including Renogy, Rich Solar, Newpowa, and HQST all publish detail spec sheets for their 100 watt panels and cross-referencing Voc, Vmp, and temperature coefficient before purchasing takes less than five minutes.
How to Test Your 100 Watt Solar Panel Voltage Correctly?
Testing panel voltage accurately requires a few straightforward steps. Use a digital multimeter set to DC voltage with a range above 25V. Disconnect the panel from your charge controller and any load. Take the reading in direct sunlight, ideally between 10AM and 2PM when the sun angle is high.
Touch the red probe to the positive terminal and the black probe to the negative terminal. A healthy 100 watt panel should read between 21 and 23 volts under these conditions.
Conclusion:

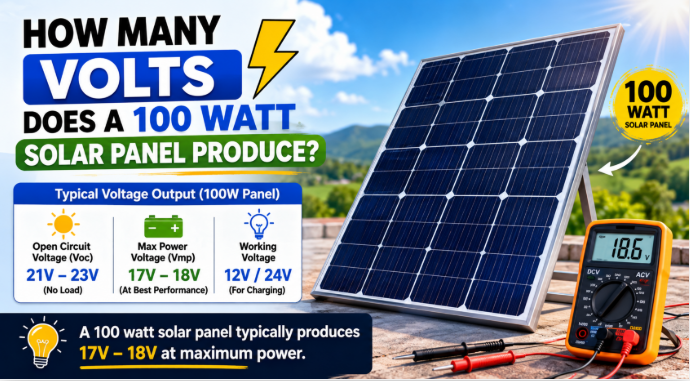

A 100 watt solar panel produces an open circuit voltage of 21 to 23 volts and a working voltage of 17 to 19 volts under standard test conditions. In real-world use, expect it to operate between 14 and 18 volts depending on your charge controller type, battery state of charge, and ambient temperature.
The panel is classify as 12V nominal meaning it is design to charge a 12 volt battery system but it produces significantly more than 12 volts by design, because that voltage overhead is what makes charging physically possible.
Frequently Asked Questions:
What is the 120% rule for solar panels?
The 120% rule (NEC 705.12) means your main breaker plus your solar breaker cannot exceed 120% of your panel’s busbar rating. On a 200A busbar with a 200A main breaker, your maximum solar breaker is 40A. This prevents overloading your home’s electrical system and is enforce during all solar installation inspections.
What is the 33% rule in solar panels?
The 33% rule means never discharge your battery below 33% of its total capacity. For a 100Ah lead-acid battery, usable capacity is approximately 67Ah. This protects against permanent capacity loss cause by deep discharging. Lithium batteries are more tolerant and can safely discharge to 20% or lower.
How long would it take a 100W solar panel to charge a 12V battery?
A 100W panel produces around 8.3A under ideal conditions. To charge a fully deplete 100Ah battery, expect 9 to 10 hours of good sunlight with a PWM controller, or 7 to 8 hours with a more efficient MPPT controller. A smaller 50Ah battery charges in roughly 4 to 5 hours.
Is my 100 watt solar panel performing correctly?
Test it with a multimeter between 10AM and 2PM on a clear day. Open circuit voltage should read 21 to 23 volts. Under load, expect 5.5 to 8.5 amps depending on your controller. Consistently below 70% of rated output after ruling out shading and dirt likely indicates cell degradation or a warranty issue.
How many volts will a 100 watt solar panel produce?
A 100W panel produces 21 to 23 volts open circuit (Voc) and 17 to 19 volts at maximum power (Vmp). Under load it operates between 14 and 18 volts depending on your charge controller and battery state. Nominal voltage is 12V — meaning it is design for 12V battery systems.
